Dinan Closed Carbon Fiber Cold Air Intake - BMW F22 / F23 230i (2017-2021) / F30 / F31 / F34 330i (2017-2019) / F32 / F33 / F36 430i (2017-2020)
Sold OutBMW built the factory intake tube on the B46/B48 four-cylinder with baffles and a small Helmholtz chamber to keep it quiet. Those same features make the airflow turbulent and cost you power. Dinan took them out.

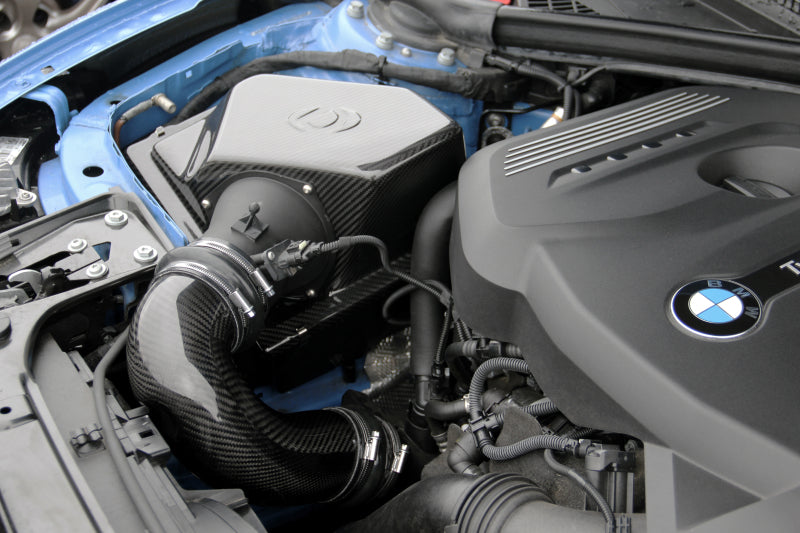

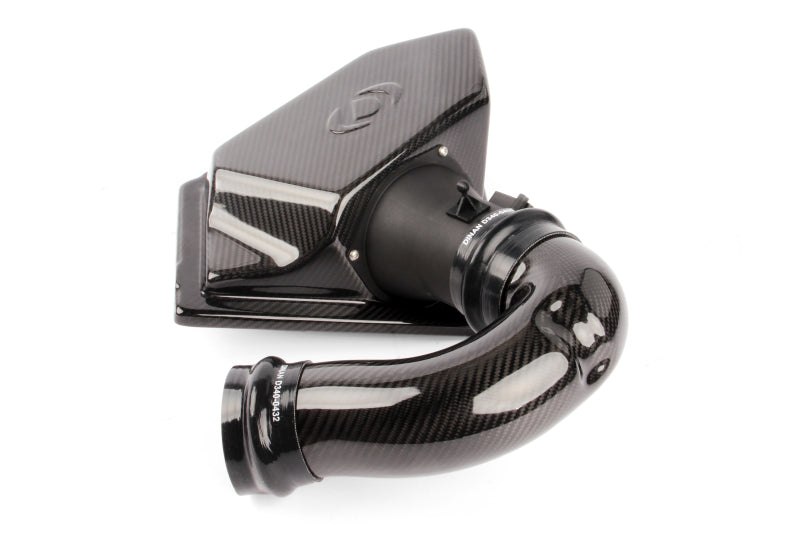

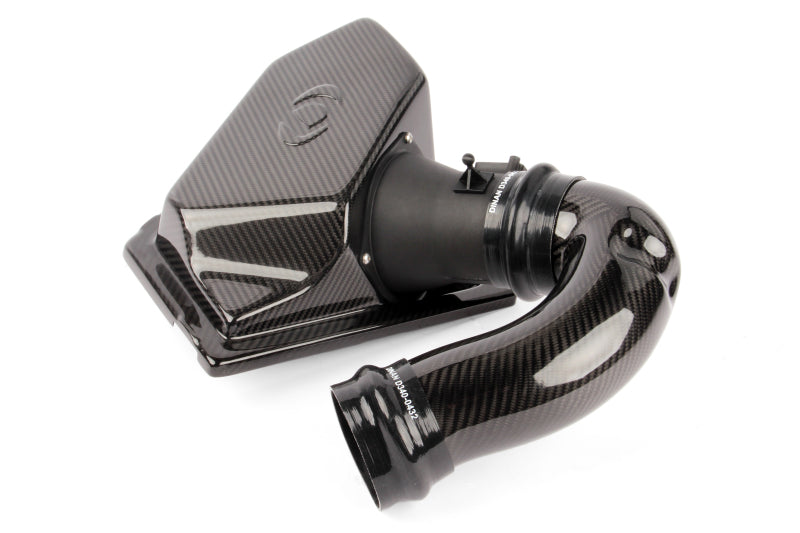

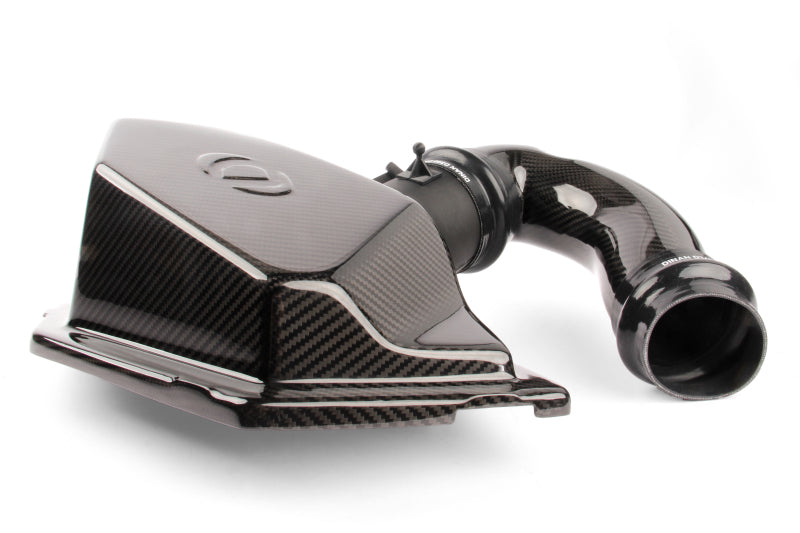

The Dinan Closed Carbon Fiber Cold Air Intake for the BMW 230i, 330i and 430i gives the engine a fully sealed airbox with 30% more volume than stock, a larger filter and a smooth carbon fiber intake tube. Dinan measured +6 hp and +6 lb-ft at 5000 rpm on a completely stock car, with no tune required.
Why a Closed Dinan 230i / 330i / 430i Intake

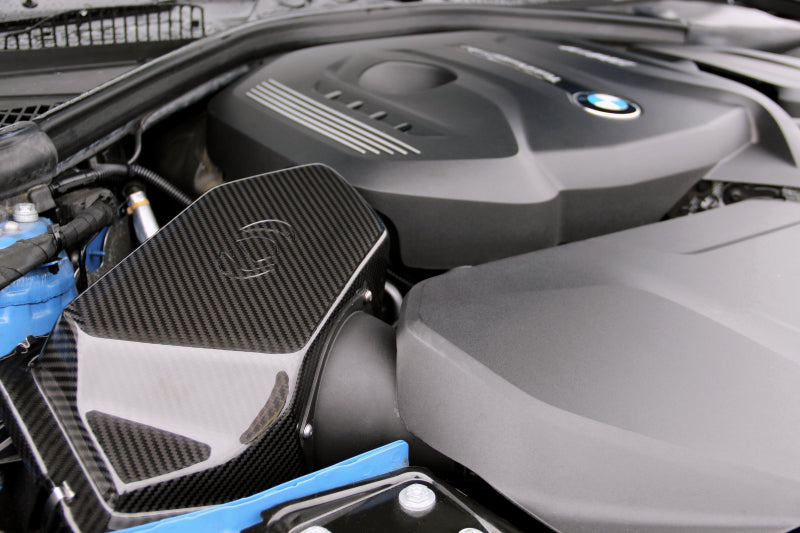

A sealed airbox keeps engine bay heat away from the filter and feeds the engine cold outside air, which is what a cold air intake is supposed to do on a turbocharged engine. The tradeoff is sound: the closed system adds only a small amount of intake noise. If you want a louder induction note, Dinan's semi-open intake adds an open port for more sound, and Dinan also offers a vented lid retrofit for owners of the closed system.
Dinan built this intake in carbon fiber instead of the mixed materials used on earlier four-cylinder intakes, with an improved coating so it keeps looking good in the engine bay for years.
What's Included
- Airbox lid

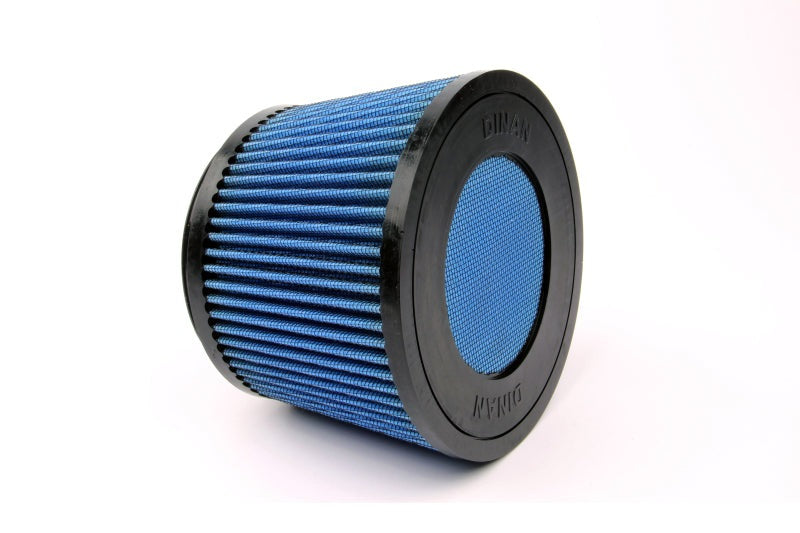

- Air filter

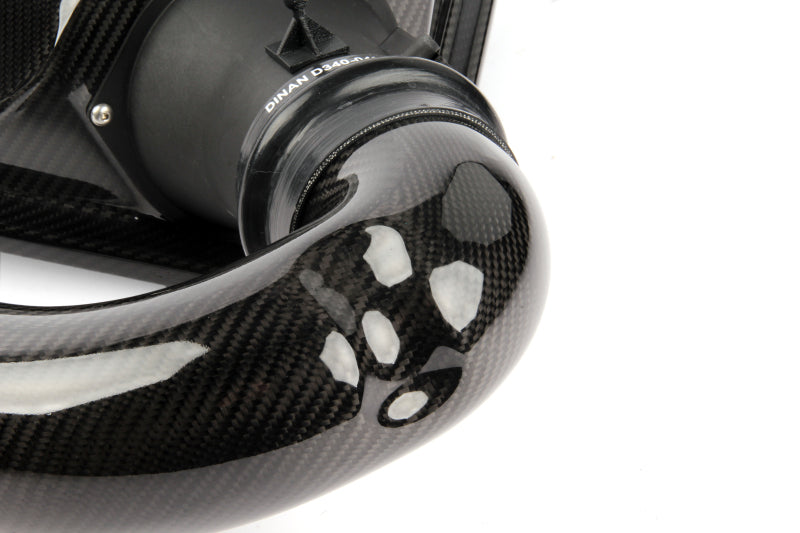

- Carbon fiber intake tube
- Heat shield
- Clamps
Key Features
- +6 hp and +6 lb-ft at 5000 rpm on a stock car (Dinan rating)
- Sealed airbox with 30% more volume than stock
- 34% more filter area than stock

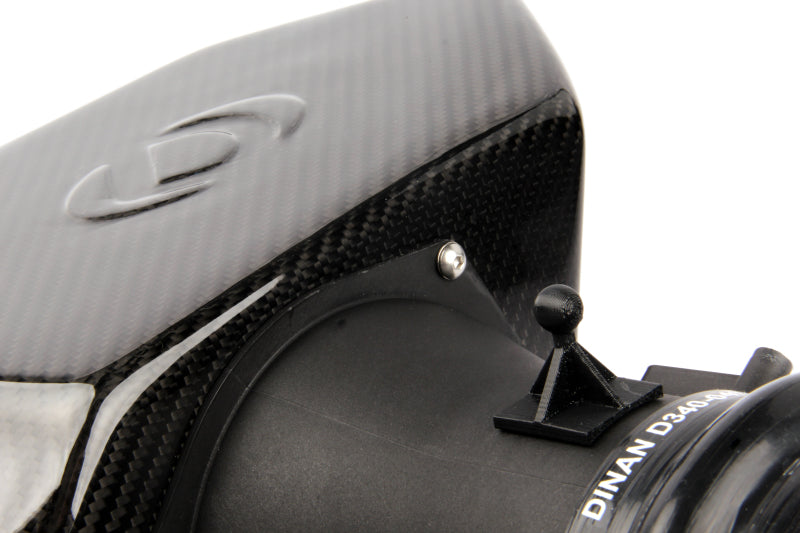

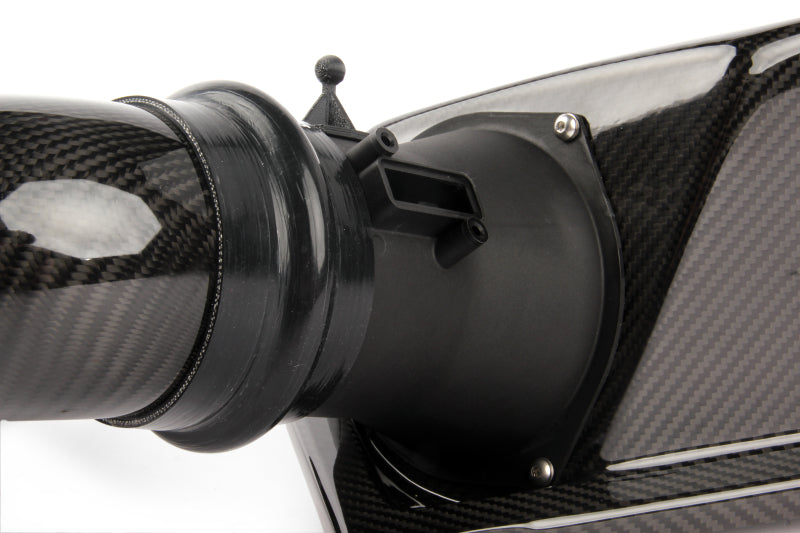

- Injection molded air mass meter housing over 20% larger than stock
- Carbon fiber intake tube with the factory baffles and Helmholtz chamber removed
- Improved throttle response and a slightly sportier sound
Specifications
- Brand: Dinan
- Part Number: D760-0048
- Product Type: Closed (sealed) cold air intake
- Material: Carbon fiber
- Engine: B46 / B48 2.0L four-cylinder
- Power Gain: +6 hp, +6 lb-ft at 5000 rpm (+5 whp, +5 wtq), no other modifications
- Filter Area: 102.1 sq in (stock 76.3 sq in)
- Airbox Volume: 30% larger than stock
- Replacement Filter: Dinan D401-0025
- Labor Time: 1 hour (Dinan estimate)
- Emissions: CARB EO D-176-56 for 2019-2021 models only
Vehicle Fitment
Confirmed fitment for the following vehicles:
- BMW F22 / F23 230i, 230i xDrive (2017-2021)
- BMW F30 / F31 330i (2017-2018), 330i xDrive (2017-2019)
- BMW F34 330i xDrive Gran Turismo (2017-2019)
- BMW F32 / F33 430i, 430i xDrive (2017-2020)
- BMW F36 430i Gran Coupe, 430i xDrive Gran Coupe (2017-2020)
Not for six-cylinder 340i or 440i models, or for the G20 330i.
Emissions and Legality
Dinan lists CARB EO D-176-56 for 2019-2021 F2x / F3x 230i, 330i and 430i models, which makes those cars 50-state legal. 2017-2018 models are not covered by the EO, so the intake is not legal for use in California on those years. If your car is registered in California, check your model year before ordering.
Installation Notes
Dinan estimates about 1 hour of labor. Follow Dinan's installation instructions, and keep the EO paperwork with the car if it is a 2019-2021 model registered in California.
- Work on a cold engine.
- Remove the factory airbox lid, filter and intake tube as described in Dinan's instructions.
- Install the Dinan airbox lid, filter and carbon fiber intake tube, then reconnect every sensor, hose and breather you disconnected.
- Tighten all clamps, start the engine and confirm there are no warning lights before driving.
