Factory Airmatic suspension on the G05 X5, G06 X6, and G07 X7 is impressive. It's also conservative. BMW tunes these trucks to accommodate the full range of drivers and road conditions, which means the ride height is set higher than it needs to be for the majority of driving you actually do. These MMX Performance lowering links fix that without touching the system that makes your X5 so capable.
The concept is straightforward: replace the factory suspension height sensor links with adjustable billet units that tell the system the vehicle is sitting at stock height when it's actually sitting lower. Your Airmatic system keeps doing exactly what it was designed to do — self-leveling, drive mode adjustment, load compensation — it just does it from a lower, more planted baseline.
No Modules. No Wiring. No Compromises.

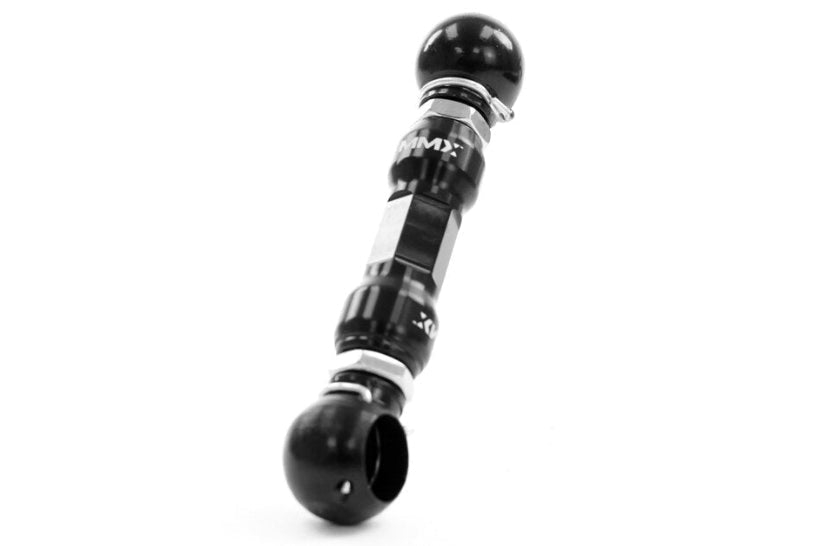

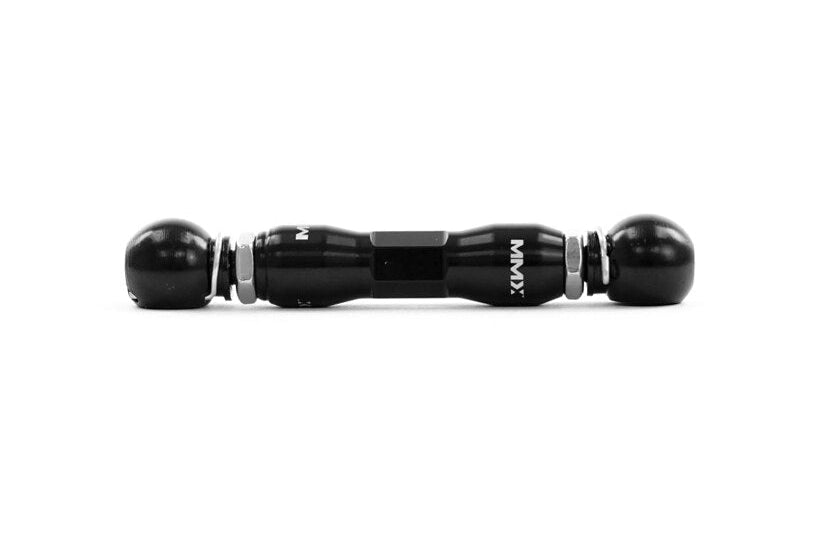

Most lowering solutions for air-suspended BMWs require an electronic module to intercept and manipulate sensor signals. MMX takes a mechanical approach instead. These links are purely hardware — precision CNC-machined from 6061-T6 billet aluminum, threaded for fine adjustment, and designed to bolt directly in place of the factory links using the original mounting points and hardware. No wiring harness. No signal splitter. No software. Nothing to fail, nothing to update, nothing to explain to a dealer.
Key Features
- Precision CNC-machined 6061-T6 billet aluminum construction
- Progressive ride height adjustment from 0mm to 50mm at front and rear axles
- Fully retains factory Airmatic ride height presets and drive modes
- Self-leveling, load compensation, and vehicle monitoring systems remain fully active
- Direct bolt-on replacement using original mounting points and factory hardware
- No electronic modules, signal interceptors, or wiring modifications required
- Fully reversible with no permanent modifications to the vehicle
- Designed and tested in the United Kingdom
- SKU: MMR39-1700
What's Included

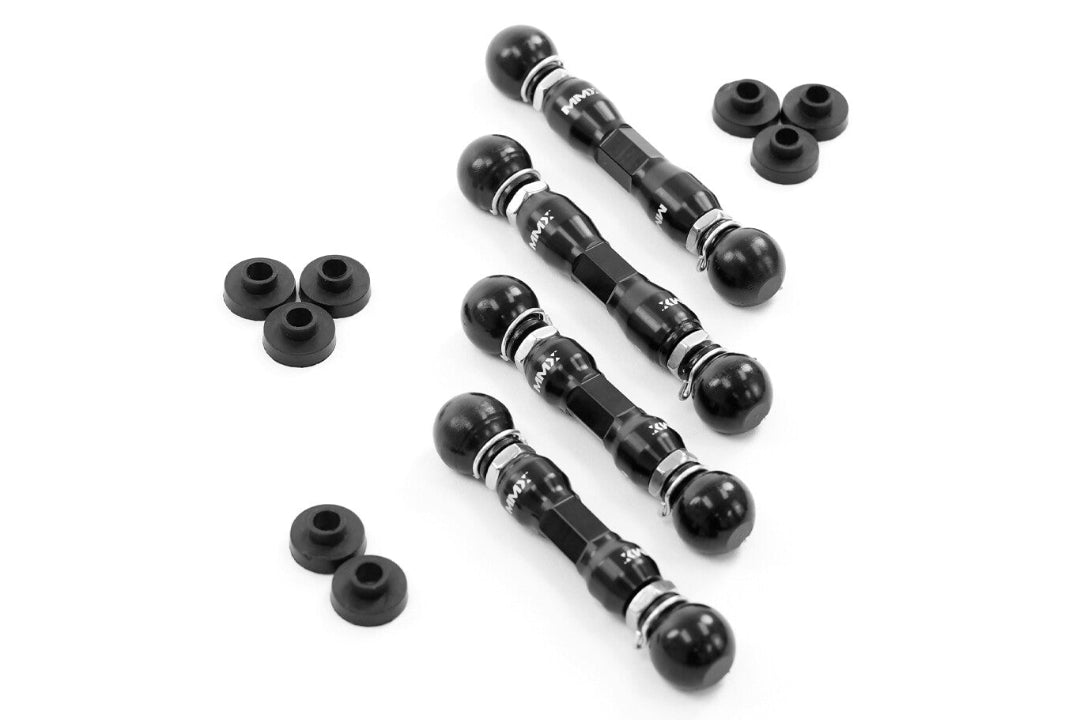

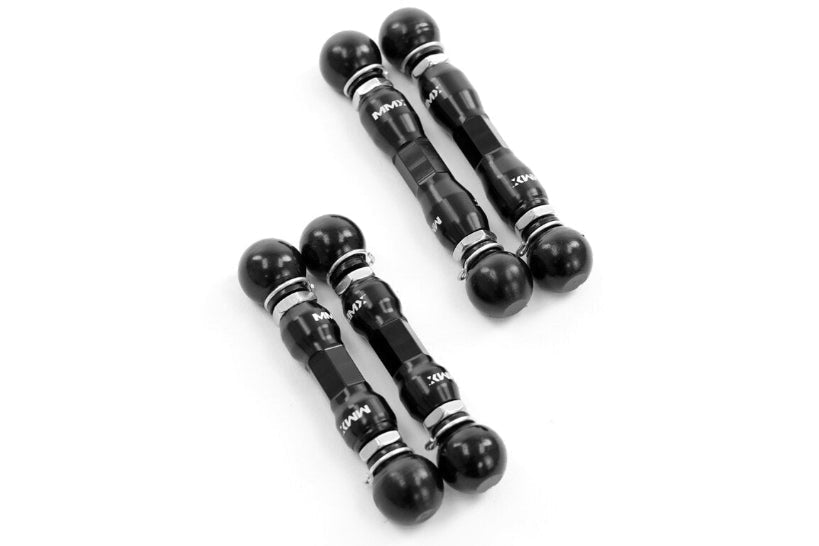

- Complete front and rear adjustable lowering link set
- All hardware required for installation
Vehicle Fitment
Requires factory BMW Airmatic air suspension. Confirm your vehicle is equipped with Airmatic before ordering. Compatible with:
- BMW G05 X5 with factory Airmatic suspension (2019-2025)
- BMW G06 X6 with factory Airmatic suspension (2020-2025)
- BMW G07 X7 with factory Airmatic suspension (2019-2025)
Installation Notes
Bolt-on installation requiring no permanent modifications. Typical install time is 60 to 90 minutes with basic hand tools. A wheel alignment is recommended after adjusting ride height.
- Safely lift and support the vehicle at the factory jack points
- Remove the wheels to access the suspension height sensor links
- Disconnect and remove the factory height sensor links at both ends

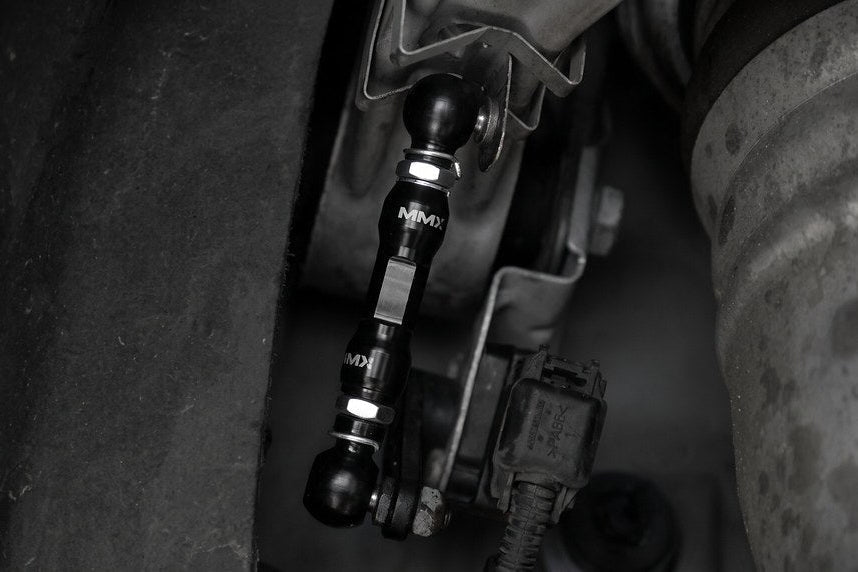

- Install the MMX adjustable links in place of the factory units using the original hardware
- Set your desired ride height by threading the links to the appropriate length — both sides must match
- Reinstall wheels, lower the vehicle, and cycle through all drive modes to confirm normal Airmatic operation
- Have the vehicle aligned to your preferred suspension geometry after final height is confirmed
