You bought 600 plus horsepower and a chassis that hides two and a half tons better than it has any right to. Then you pop the hood and find a stamped steel bar under a plastic cover.
This is the AutoTecknic Dry Carbon Strut Brace, and it does more than fix that view.
3.97 lb lighter than the factory steel brace, a 54% weight reduction
200,000 fatigue cycles at 800 N with no cracking, delamination, or fastener loosening
2,682 N ultimate load, 9% above the factory steel brace
What The Bench Testing Showed
We put a production brace on a servo universal compression tester and loaded it until it broke, then ran a second sample on a dual-cylinder fatigue rig. Here is what came back:
- Weight: 3.42 lb (1.55 kg) against 7.39 lb (3.35 kg) for the factory steel brace
- Ultimate load: 2,682 N (603 lbf) against 2,460 N (553 lbf) for the factory steel brace
- Fatigue cycling: 200,000 cycles at 800 N with no failure
Testing performed on the F95 and F96 application.
3.97 lb off the nose. That is 54% lighter than the steel piece it replaces, and every ounce of it comes off the highest, most forward point in the engine bay. It will not change your lap time. It is real mass removed from the worst possible place to carry it, and it is the kind of change that adds up when you make it four or five times across a build.
9% higher ultimate load than factory steel. The carbon plate took 2,682 N before the laminate gave up, against 2,460 N for the OEM brace. Well past anything a road car sees.
200,000 fatigue cycles with nothing to report. No fastener loosening. No surface cracking. No delamination. No creaking. This is the number that should actually matter to you, because "will this expensive carbon part start rattling in two years" is the real question, and the answer is no. Under normal driving and wind load the brace stays fully inside its elastic range and returns to shape with zero permanent deformation.

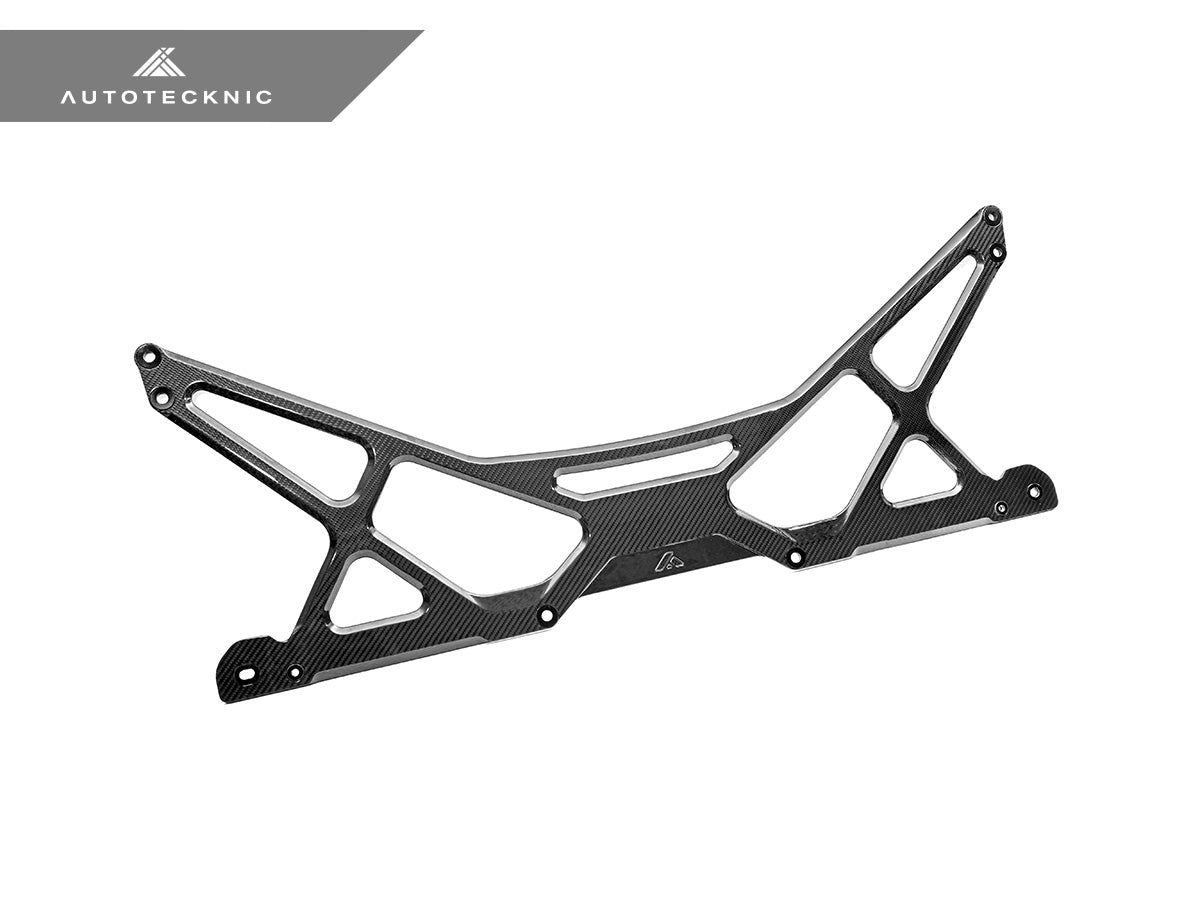

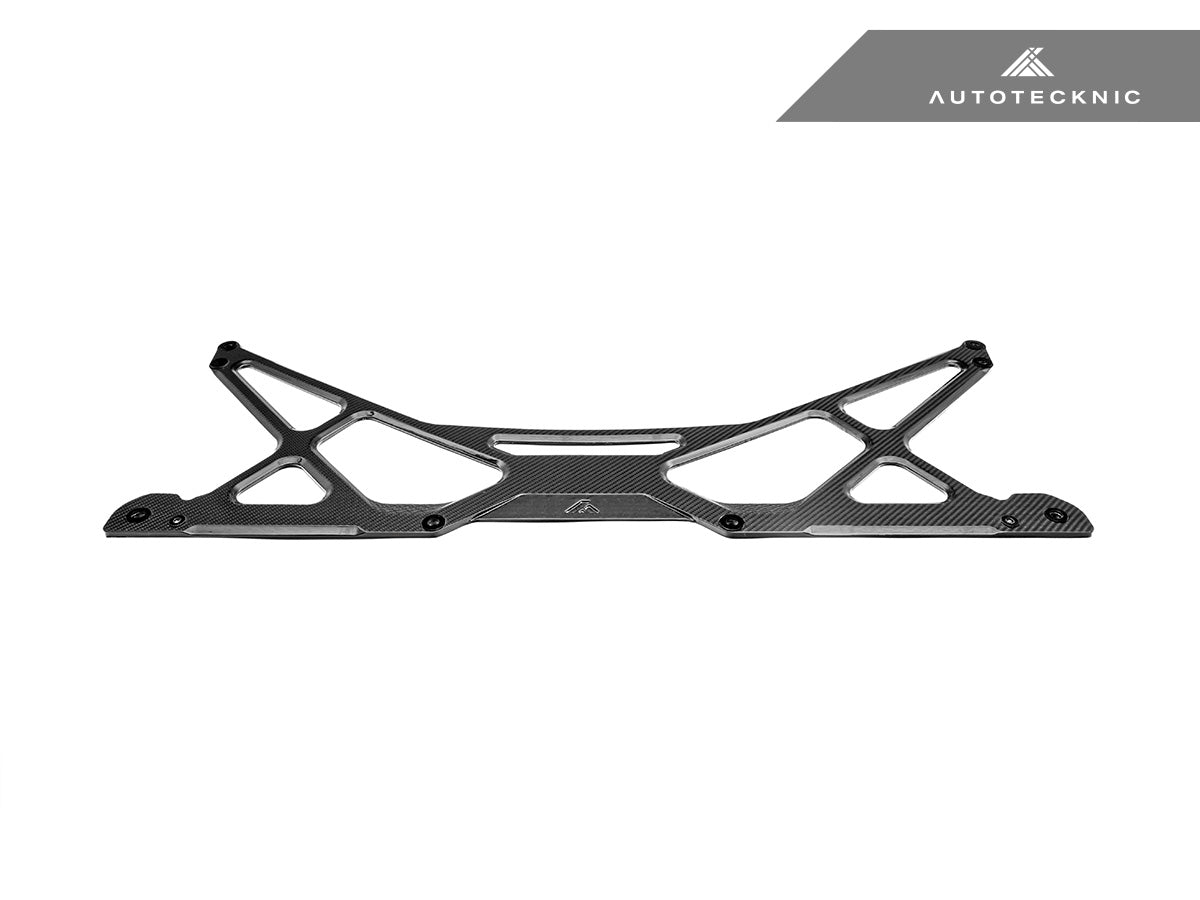

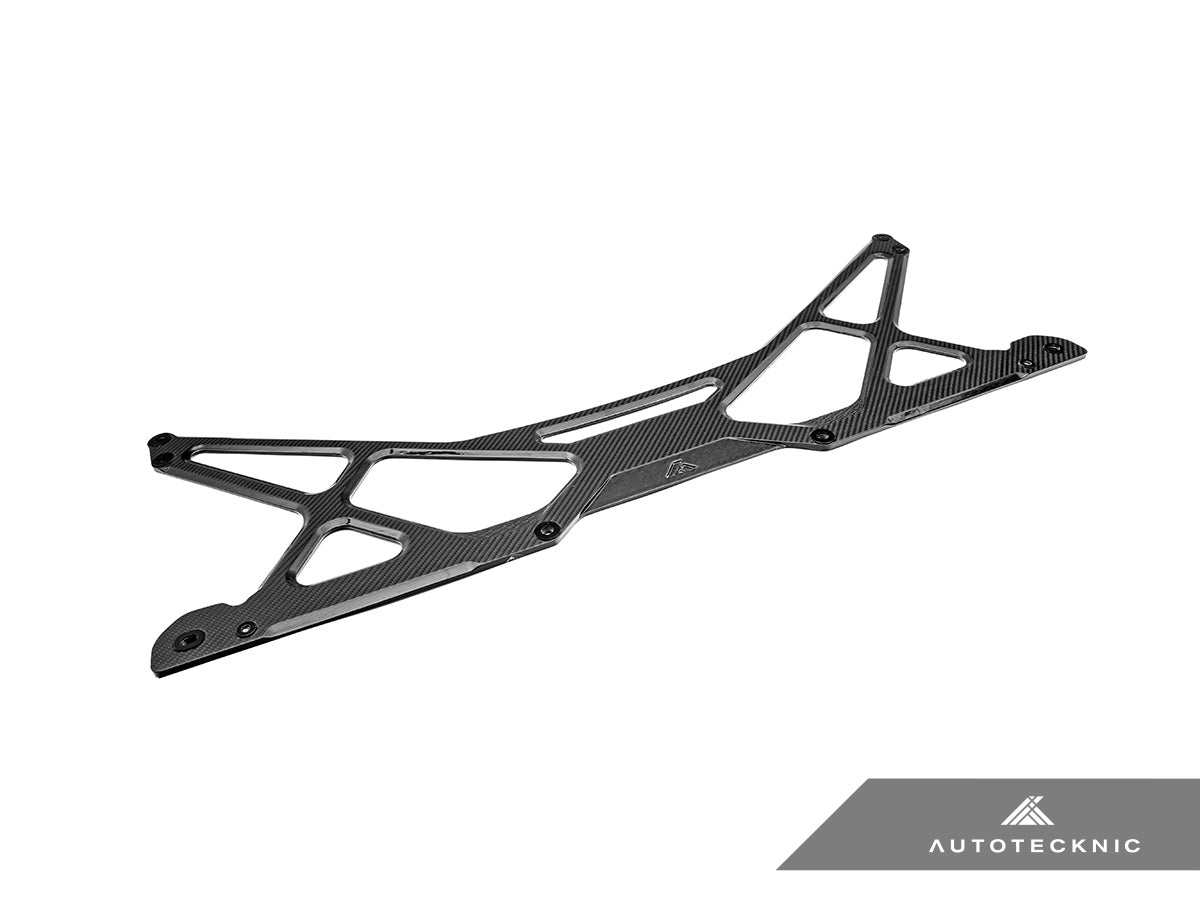

Dry Carbon Strut Brace Machined From One Piece, Not Bonded Together
Most carbon strut braces are a compromise you cannot see. A carbon tube, two metal end mounts, and structural adhesive holding the assembly together. The bond line is the weak point, and after enough underhood heat cycles it is the first thing to let go.

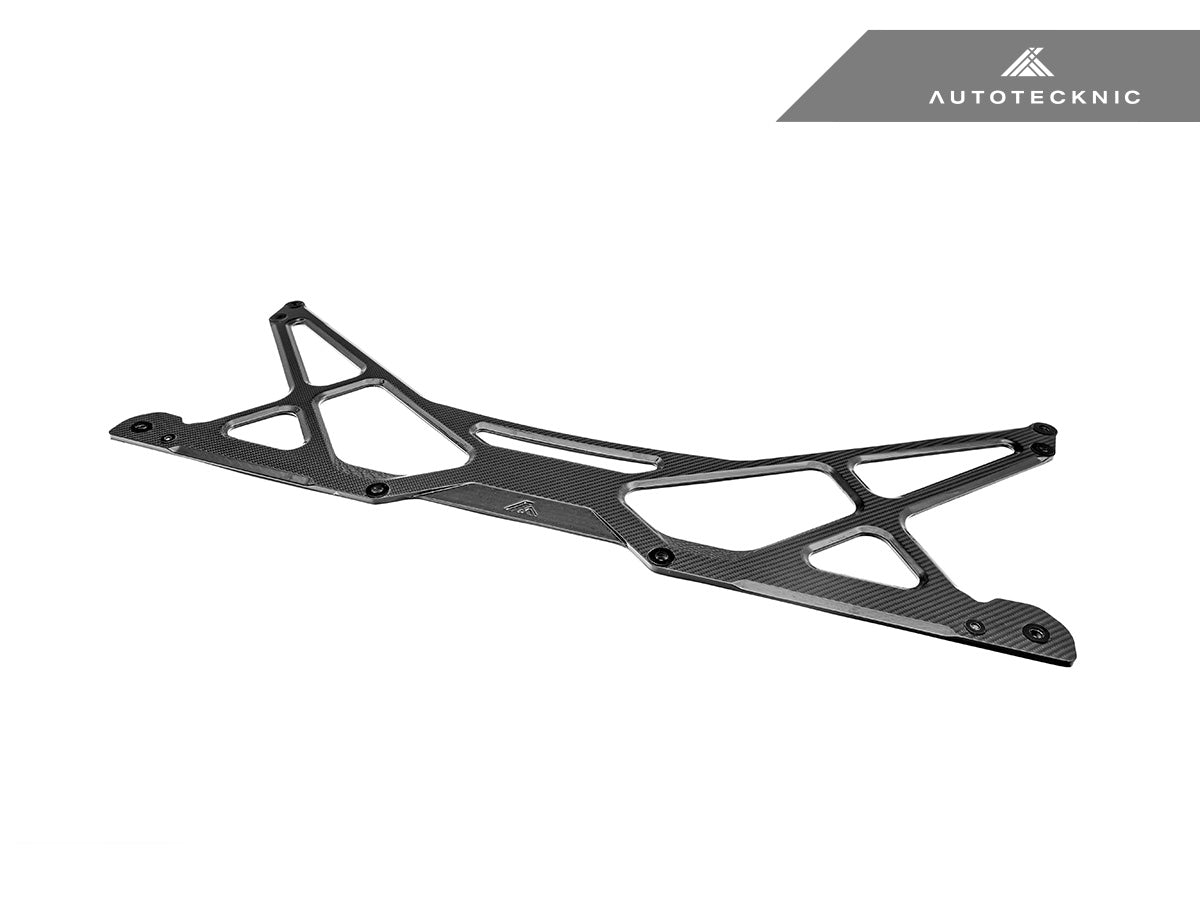

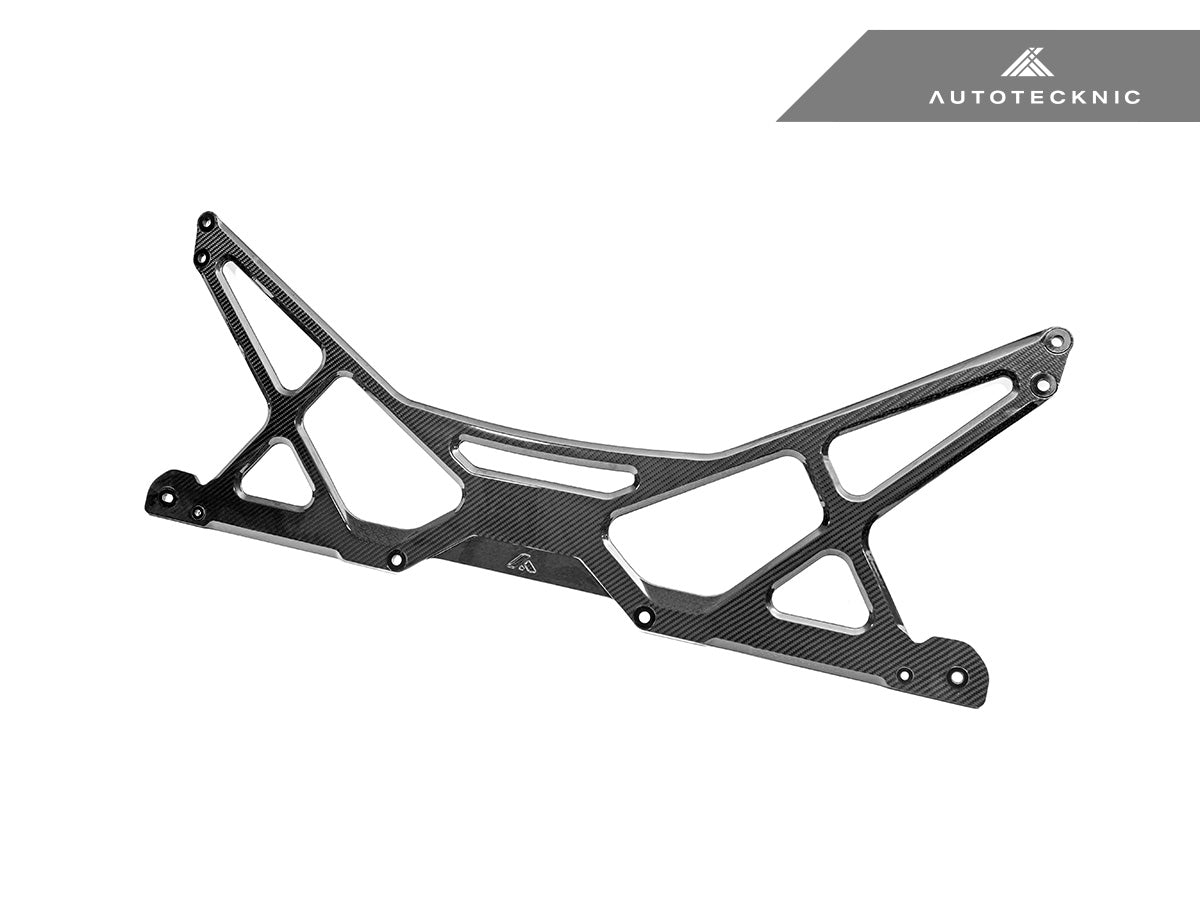

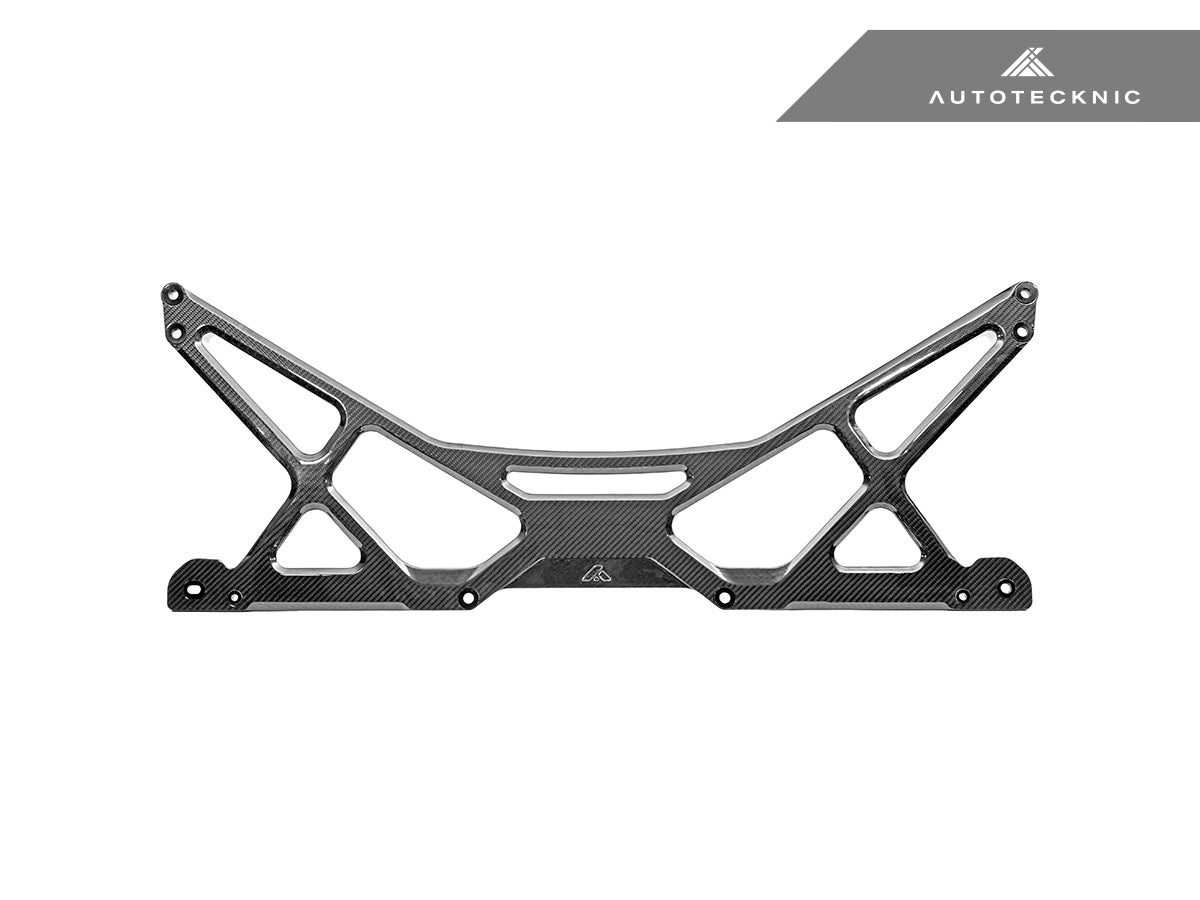

The AutoTecknic Dry Carbon Strut Brace (part number ATK-BM-0523) has no bond line to fail. It is CNC-machined from a single multi-layer dry carbon fiber laminate plate, with the hollowed center section cut rather than molded. No tubes. No adhesive joints. No end caps to work loose. That is also why the edges stay crisp and the twill runs unbroken across the full span instead of stopping at a seam.
Is This Real Carbon Fiber?
Yes, and it is worth being specific about what that means, because the market is full of parts that are not.

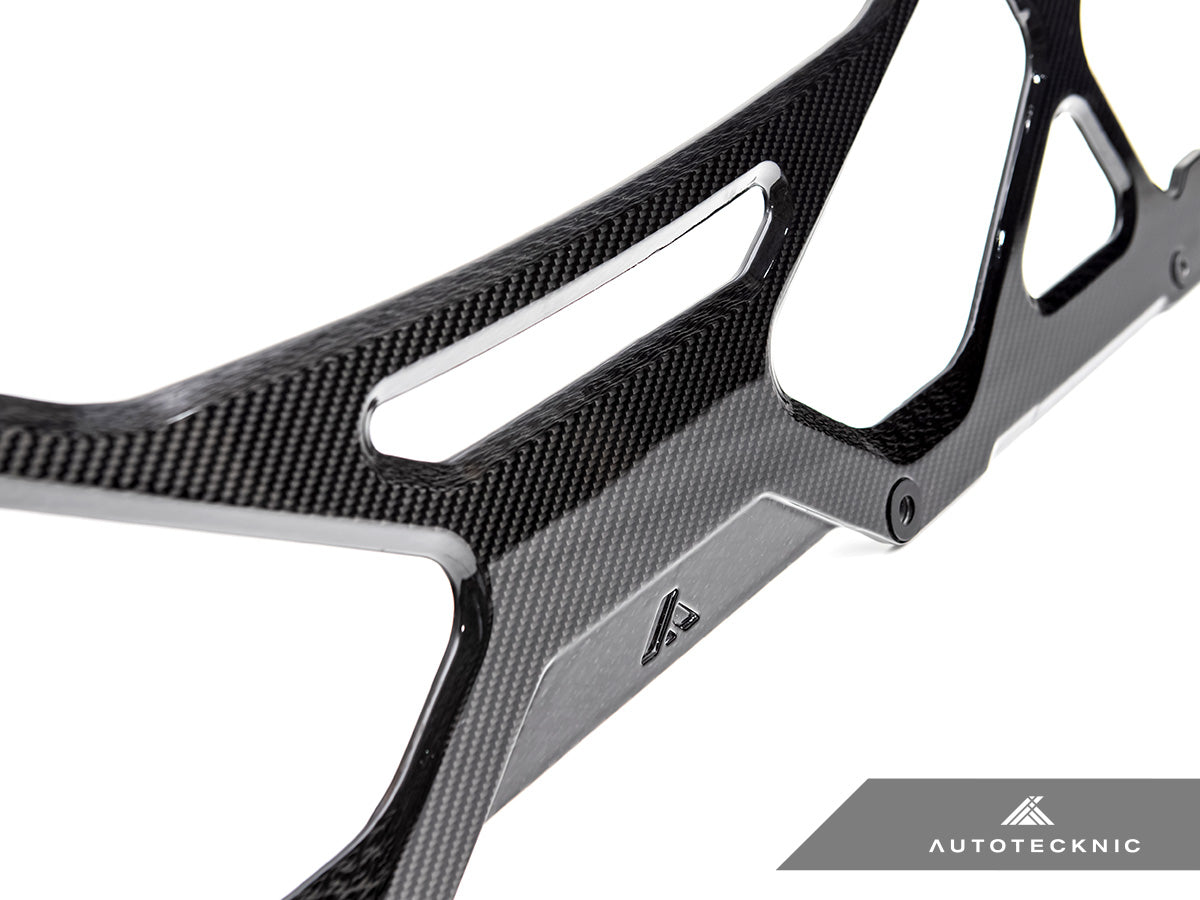

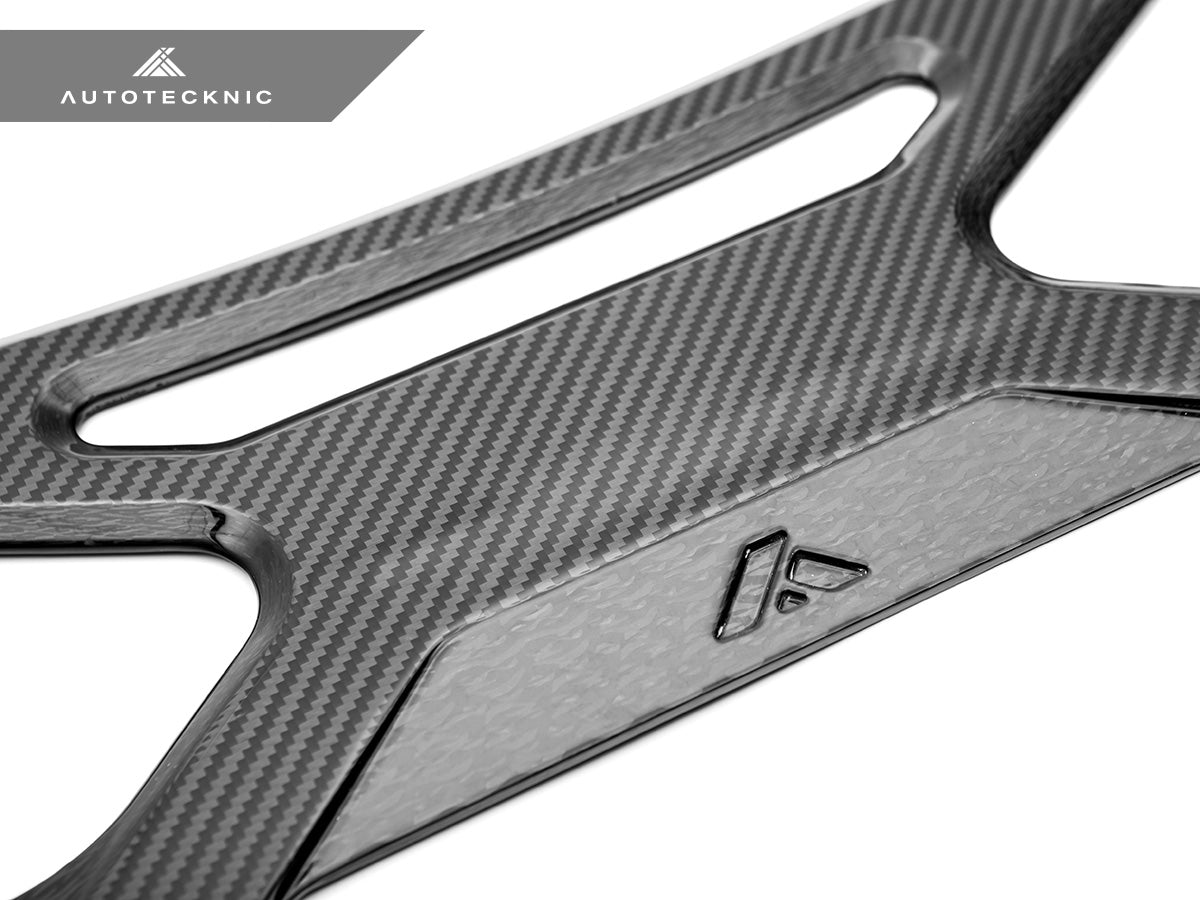

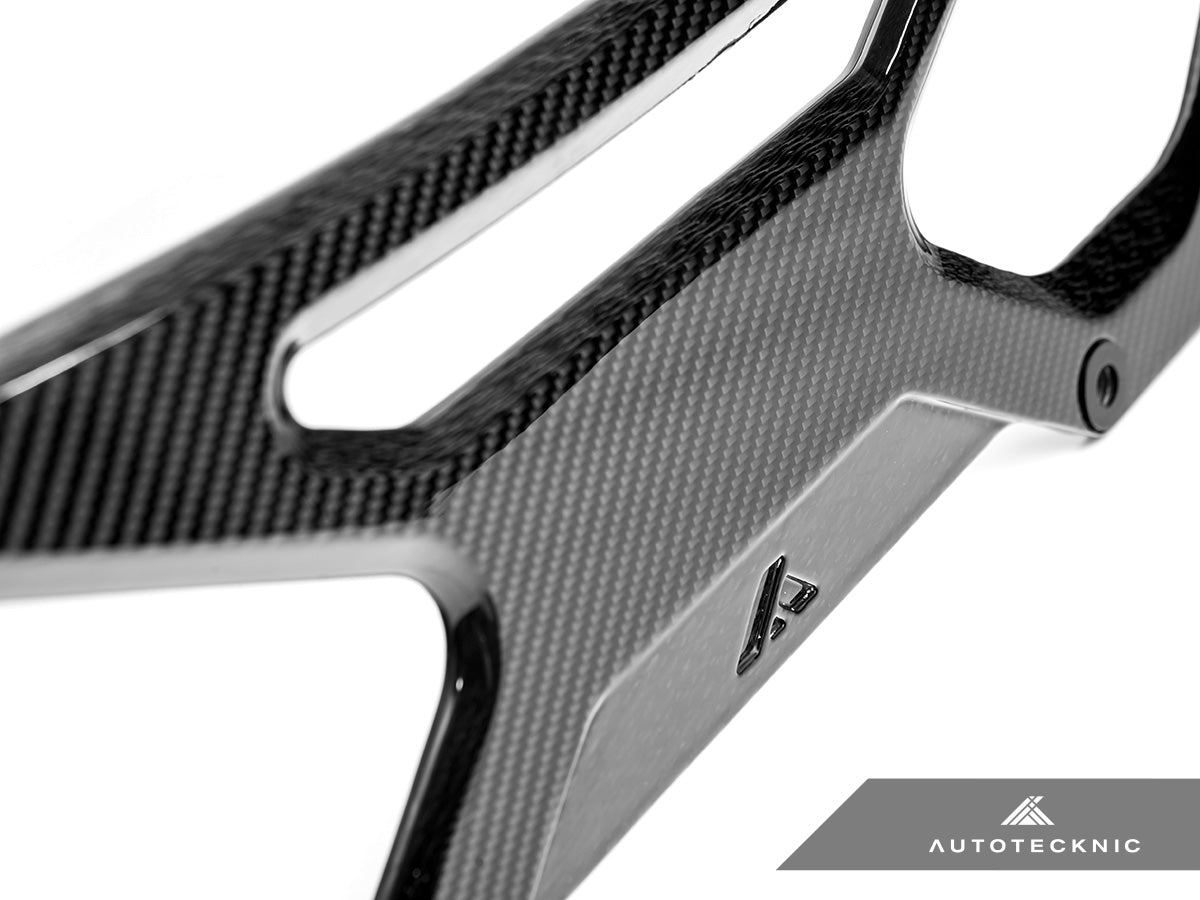

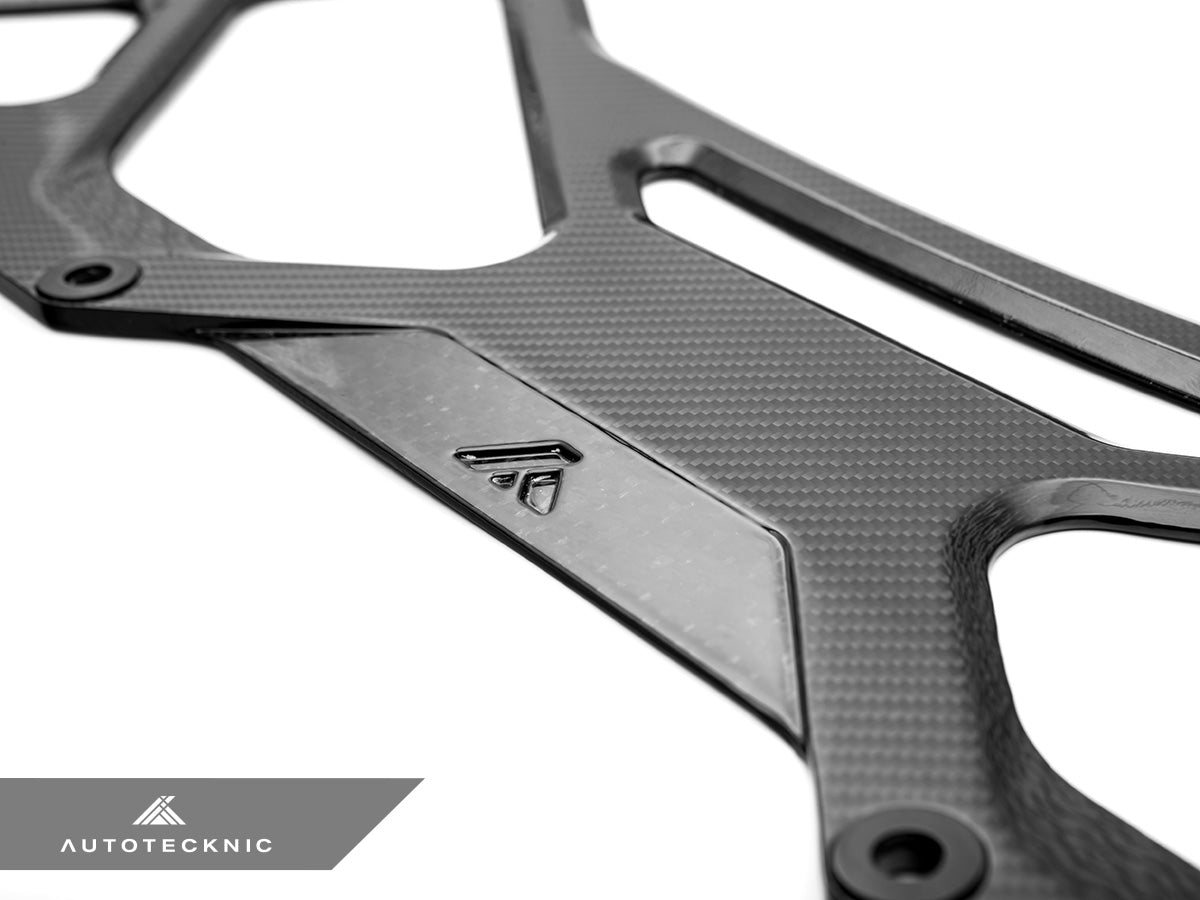

This is 100% genuine pre-preg dry carbon fiber, real 2x2 twill weave, cured under controlled heat and pressure at a high fiber-to-resin ratio. It is not a carbon-look vinyl wrap. It is not a hydrodipped plastic shell. It is not wet-layup carbon carrying a heavy resin content and calling itself dry carbon. Run your hand along the edge of the machined center section and you will see actual laminate plies, not a printed film wrapped around a substrate. The UV-resistant clear coat is there so the weave still looks like this in year five, available in gloss or satin.
Key Features
- CNC-machined from a single multi-layer dry carbon fiber plate, no bonded tube-to-end-mount joints
- 100% genuine pre-preg dry carbon fiber, real 2x2 twill weave, high fiber-to-resin ratio
- 3.42 lb installed weight, 3.97 lb lighter than the factory steel brace
- 2,682 N ultimate load, 9% above the OEM steel unit
- Validated to 200,000 fatigue cycles at 800 N with no cracking, delamination, or fastener loosening
- Full elastic recovery with zero permanent deformation under normal operating loads
- Hollowed center section reduces mass without introducing a bonded seam
- Plate-style construction with integrated mounting sections
- UV-resistant clear coat in gloss or satin finish

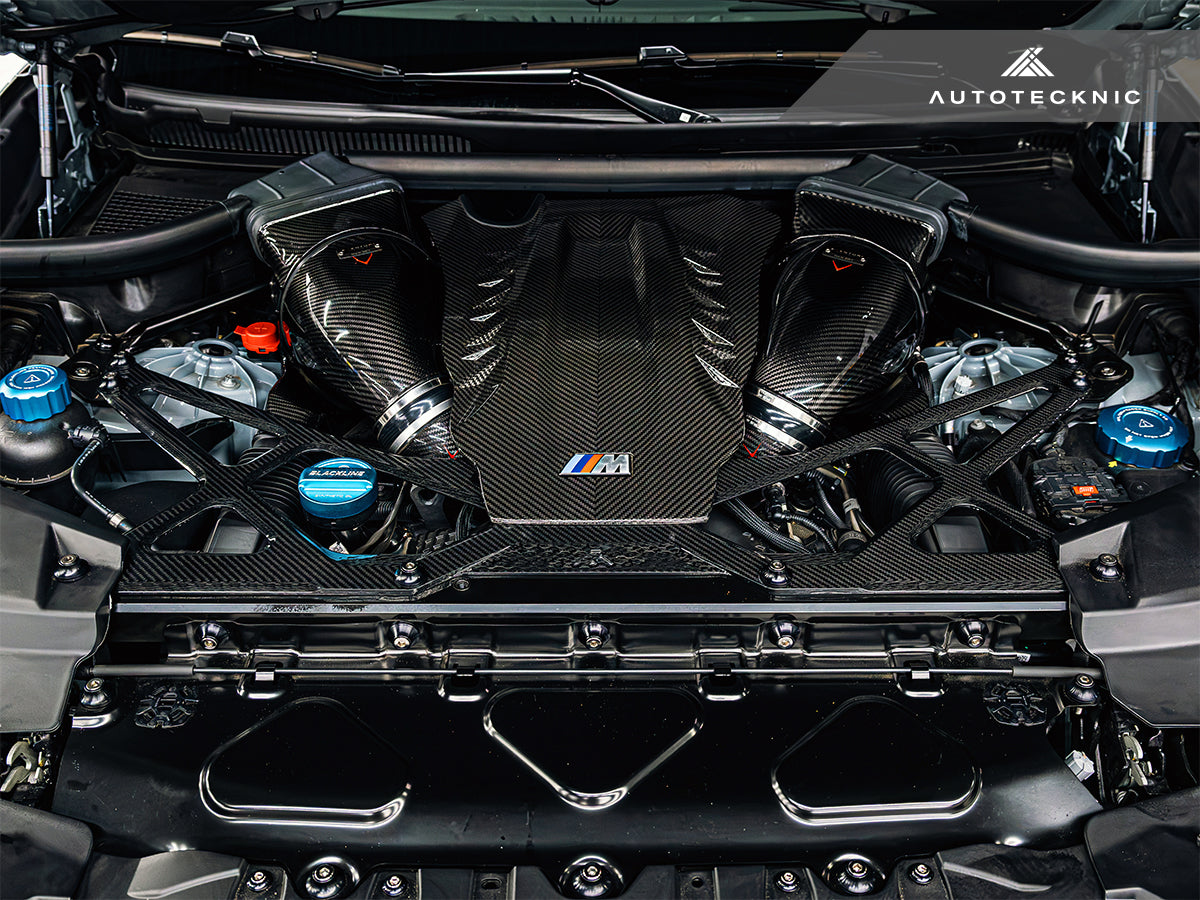

- Bolts to factory strut tower mounting points
- No drilling, cutting, or permanent modification required
- Part number ATK-BM-0523
What Is Included
- One AutoTecknic Dry Carbon Strut Brace
- Required mounting hardware
Vehicle Fitment
- 2020 to 2026 BMW X5M (F95)
- 2020 to 2026 BMW X5M Competition (F95)
- 2020 to 2026 BMW X6M (F96)
- 2020 to 2026 BMW X6M Competition (F96)
- 2023 to 2026 BMW XM (G09)
Please confirm vehicle compatibility before ordering.
Installation Notes
This is a 30 to 45 minute job with hand tools, and most owners handle it themselves. It uses the factory strut tower mounting points. No drilling, no cutting, no permanent modification, and nothing to undo if you sell the car.
Two things to get right, and they are the difference between a brace that lasts and one that does not:
- Use the supplied washers at every mounting point. Carbon laminate does not like point loads. The washers spread clamping force across the plate face. Do not install without them.
- Torque diagonally and evenly, and do not gorilla it. Snug each fastener in a cross pattern rather than running one down fully before moving to the next. Over-torquing a single point is the one reliable way to start edge delamination in a carbon plate. Firm and even beats tight.
Avoid striking the hollowed center section with tools or dropped hardware during installation. If you are not comfortable managing torque by feel, professional installation is recommended.
